| ctMDay
ActiveX |
ctMDay is an appointment scheduling component that displays a multi-day schedule for a single resource or
a single day’s schedule for multiple resources. Appointments are easily created by clicking and selecting time lines and entering the appointment text from the keyboard
making it ideal for PIM or scheduling based applications. ctMDay provides a powerful and dynamic data presentation, capture, and print scheduling interface. |
|
| (IMPROVED)
Time
Segments : The general time segments can be
set to 5, 10, 15, 30
and 60 minute segments. New advanced time options now allow you to
set the time increments along a 1-60 minute scale. Making it
ideal for scheduling appointments that do no fall along a
traditional time pattern such as golf courses. |
|
 |
|
The ctMday set to 7 minute intervals for a golf course |
| (IMPROVED)
Multiple
Columns : Display up to 10 visible columns and store data for up
to 32,000 virtual columns. Display multiple days for a single
resource, or multiple resources for a single day. Column images can
now be assigned "code" defined columns. |
|
|

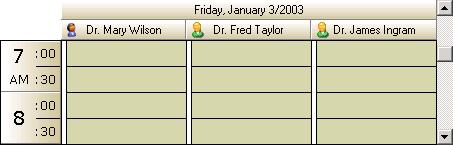

ctMDay displaying schedules for multiple doctors in a single day.
|
| (IMPROVED)
Edit
Text : Edit text directly from an appointment. Click on the
appointment to start editing the text. A new edit option allows for
editing to stop when the "Enter" key is pressed. This makes the
control ideal for entering a series of appointments
directly from the keyboard. Use the arrow keys to move to the appropriate
time. Start to enter the appointment text. Hit the "Enter"
key to finish editing and then quickly move to the next appropriate
time. |
| (NEW)
Fill Styles : The background of the title, header, and time area can all be colored with different fill
styles. Just like those found in the new GDI+ drawing
routines for .NET. including patters for horizontal, vertical,
diagonal, horizontal bump, vertical bump, pyramid, diamond, circular
and elliptical gradient fills. |
| (NEW)
Task Bar Fills : The task bars (the colored bars down the left
side of the appointment) can be drawn with their fill color
representing the actual time. For instance, if the appointment is
only 10 minutes long, but the actual appointment is in a 30 minute
segment, only the first third of the task bar will be colored. |
| Appointment Management Methods : Custom methods to programmatically add, change, and delete appointments. |
| Appointment
Conflict Management : Includes methods and properties for locating conflicting appointments.
Appointment area algorithms in the control optimize screen space
when appointments conflict. |
| Appointment
Images : Each appointment can display up to 4 stock images
(reminder, tentative, location, and private) as well as three custom
images. |
|
|
|
An
appointment in ctMDay with a reminder, private, and location icon,
and with regular and location text
|
| Print Schedule : Custom method prints schedule with a simple line of code. |
| Print In
Window : Also supports the PrintInWindow method which prints
the contents of the current schedule on a specific area of a page. |
| Drag and Drop : Drag and drop between columns or in and out of component. Built-in support for drag and drop of items between columns or run-time drag and drop of items in to and out of the component. |
| Column Block Color : Supports the independent coloring of time blocks within individual columns. |
| Definable
Times : Define the starting and ending time for the schedule.
Display the times in standard or military time. |
| Change
Appointment Times : Change the starting time and length of an
appointment by clicking and dragging along the top or bottom bar of
the appointment. |
| Key ID's
: Key ID values can be automatically generated for each
appointment. This makes moving data for an appointment to and from a
database much easier. |
| Multiple
Time Displays : Display multiple time areas for different time
zones. |
|
|
|
ctMDay
with two different time displays.
|
| Image
List : Store up to 100 images in an internal image list. |
| iCalendar Support :
Allows the transfer of calendaring and scheduling information between ctDays and applications that support the iCalendar specifications. |
| Masked
Bitmaps : Support for masked bitmaps. |

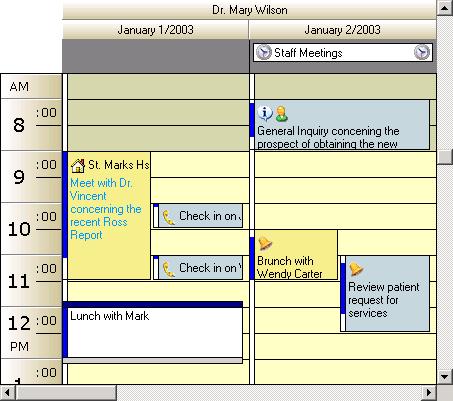

| Additional
Views of ctMDay |
|
|
|
Also See :
ctDays, ctWeek |
